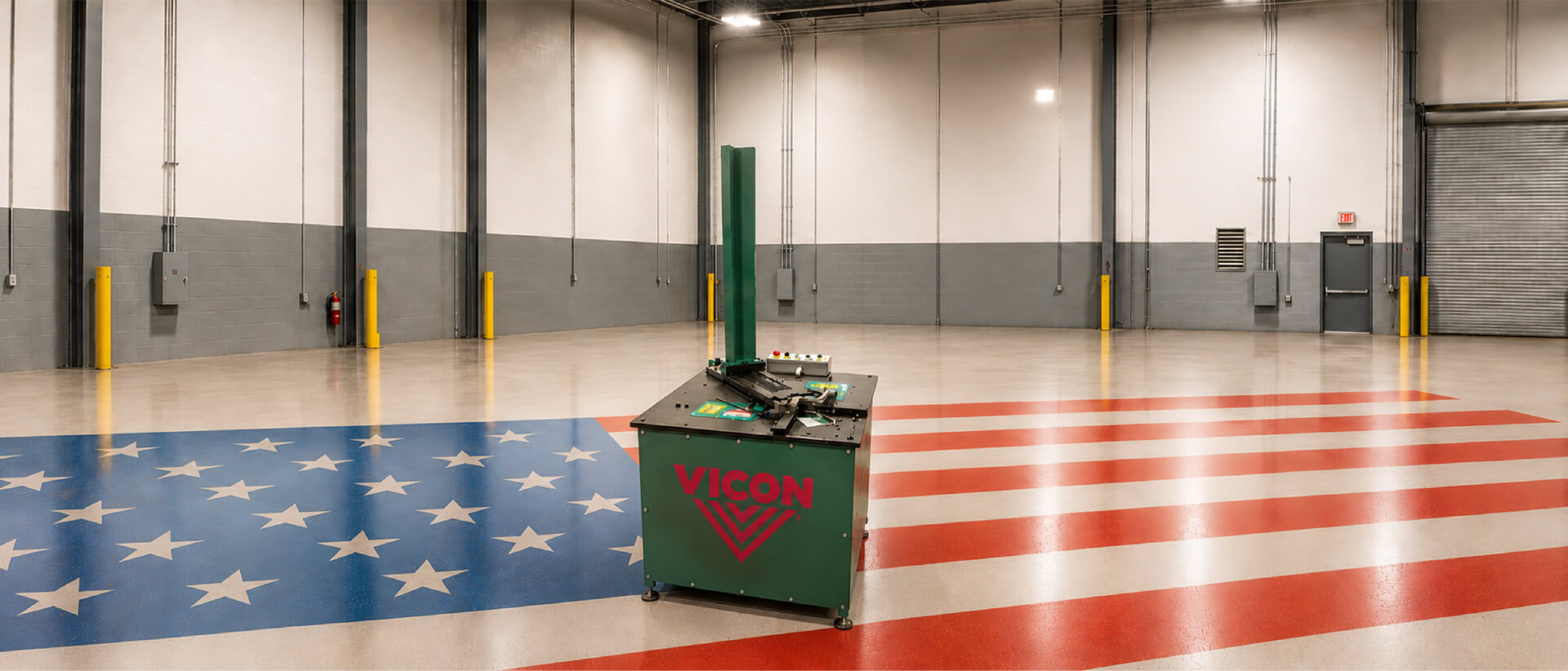

The Vicon Single Head Corner Insertion Machine is designed to streamline corner insertion for rectangular duct fittings while delivering the flexibility fabricators need for a wide range of production requirements. Built with a robust frame structure and designed specifically for inserting flanged duct fittings at single corners, the machine provides consistent performance, reliable operation, and simplified setup.
Equipped with standard tooling for 16 to 26-gauge galvanized steel duct, the Single Head Corner Insertion Machine accommodates a variety of corner and flange styles commonly used throughout the HVAC industry. Interchangeable tooling and quick-change capabilities allow operators to efficiently transition between flange types, reducing downtime and improving overall productivity.
Compatible with TDX™, TDF™, and TDC™ duct connector systems as well as various brands of stackable corners, the machine provides exceptional versatility for fabrication shops producing a wide range of duct configurations. Manual or automatic push-button controls further enhance ease of operation while helping maintain consistent assembly quality.
Available in tabletop or in-ground configurations, the Vicon Single Head Corner Insertion Machine can be customized to fit virtually any fabrication environment. Designed, engineered, manufactured, and supported in the USA, it delivers the reliability, flexibility, and performance HVAC fabricators depend on every day.
Key Features
Simultaneously inserts and crimps corners for faster duct assembly and increased production throughput.
Interchangeable tooling allows operators to quickly transition between flange styles and production requirements.
Supports TDX®, TDC®, and TDF® connector systems and is compatible with most stackable corner brands.
Sensor indicator lights and low-corner alarm technology help improve efficiency and reduce production errors.
See how the Vicon Single Head Corner Inserter delivers fast, accurate corner insertion with automated operation and consistent duct assembly for HVAC fabrication.
