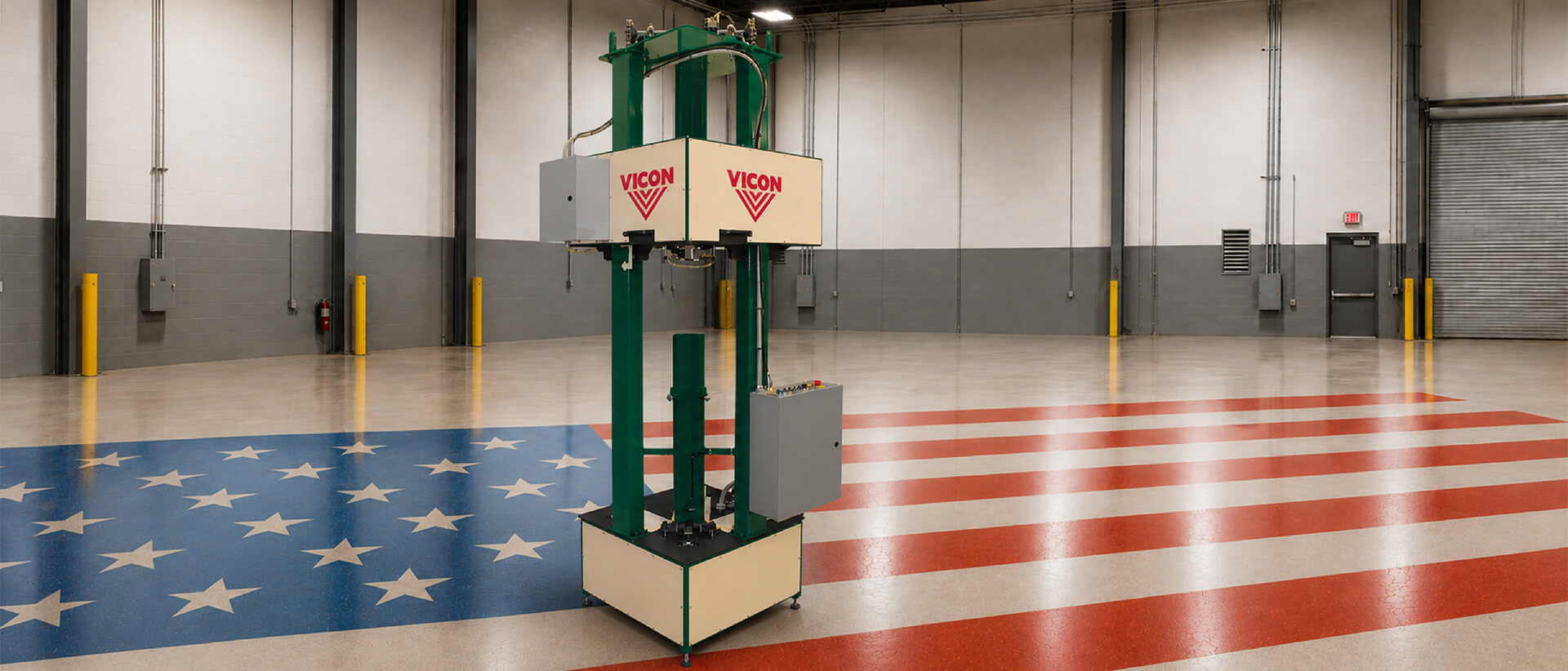

The Vicon Dual Head Corner Insertion Machine is designed to automate the insertion and crimping of stackable bolt connection corners for rectangular duct fabrication. Engineered for speed, consistency, and reliability, the system inserts corners into straight duct with T25-a or T25-b flanges, helping fabricators increase throughput while reducing labor and assembly time.
Built to process 16 to 26-gauge galvanized steel duct sections ranging from 32" to 56" in length, the Dual Head Corner Insertion Machine features quick, tool-free adjustments for fast changeovers between duct sizes. Its heavy-duty tubular frame construction delivers long-term durability in demanding production environments while maintaining consistent corner placement and crimp quality.
Compatible with TDX®, TDC®, and TDF® duct connector systems, as well as most brands of stackable corners, the machine provides exceptional flexibility for a wide range of fabrication operations. Operator-friendly sensor indicator lights, auto or manual operating modes, and a low-corner quantity alarm help improve efficiency while reducing costly production errors.
Designed, engineered, manufactured, and supported in the USA, the Vicon Dual Head Corner Insertion Machine delivers the speed, durability, and reliability HVAC fabricators depend on every day.
Key Features
Simultaneously inserts and
crimps corners for faster duct
assembly and increased
production throughput.
Counterbalanced clamp head allows quick setup changes without tools, minimizing downtime.
Supports TDX®, TDC®, and TDF® connector systems and is compatible with most stackable corner brands.
Sensor indicator lights and low-corner alarm technology help improve efficiency and reduce production errors.
*Pit dimensions provided upon request
See how the Vicon Corner Inserter delivers fast, accurate corner insertion with automated operation and consistent duct assembly for HVAC fabrication.
