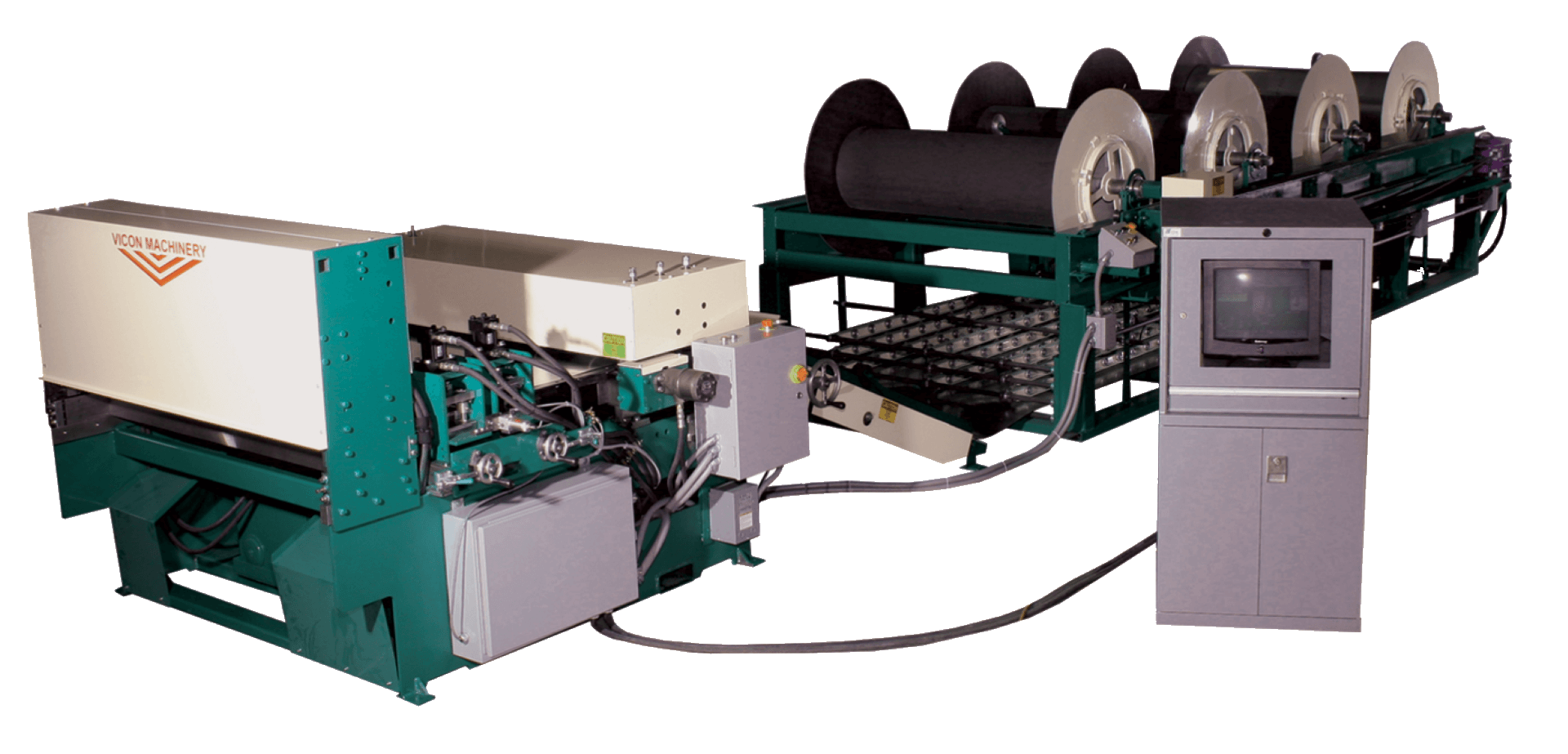

VICON Duct-Line Express

VICON Duct-Line Express

Contact SalesRequest a QuoteDownload Brochure

Automated Duct Production with Room to Grow

The Vicon Duct Line Express is the foundation of Vicon's coil line automation platform, providing HVAC fabricators with a highly efficient solution for producing beaded, notched, and sheared duct blanks. Designed as the true front-end of the Vicon Full Coil Line, the Duct Line Express delivers automated coil feeding, straightening, beading, notching, and shearing in a compact, production-focused system.

Featuring Vicon's patented quick-change coil spool technology, individual hydraulic coil drive motors, and heavy-duty material handling components, the Duct Line Express helps reduce setup time, improve material flow, and increase overall shop productivity. The modular design allows fabricators to start with a high-performance duct blanking system and expand into a complete Full Coil Line as production requirements grow.

Powered by Vicon’s HVAC Software, operators benefit from software developed and supported by Vicon's in-house engineering team, providing advanced automation, customizable production standards, and seamless integration with future coil line expansion. Designed, engineered, manufactured, and supported in the USA, the Vicon Duct Line Express delivers the reliability, flexibility, and performance HVAC fabricators depend on every day.

Key Features

Patented Coil Handling

Patented Coil Handling

Vicon's patented quick-change coil spool technology helps reduce setup time and simplify coil loading.

Vicon Fabrication Software

Vicon Fabrication Software

Software developed and supported by Vicon provides advanced automation and customizable production standards.

Automated Blank Production

Automated Blank Production

Automatically feeds, straightens, beads, notches, and shears material for efficient duct blank production.

Expandable Platform

Expandable Platform

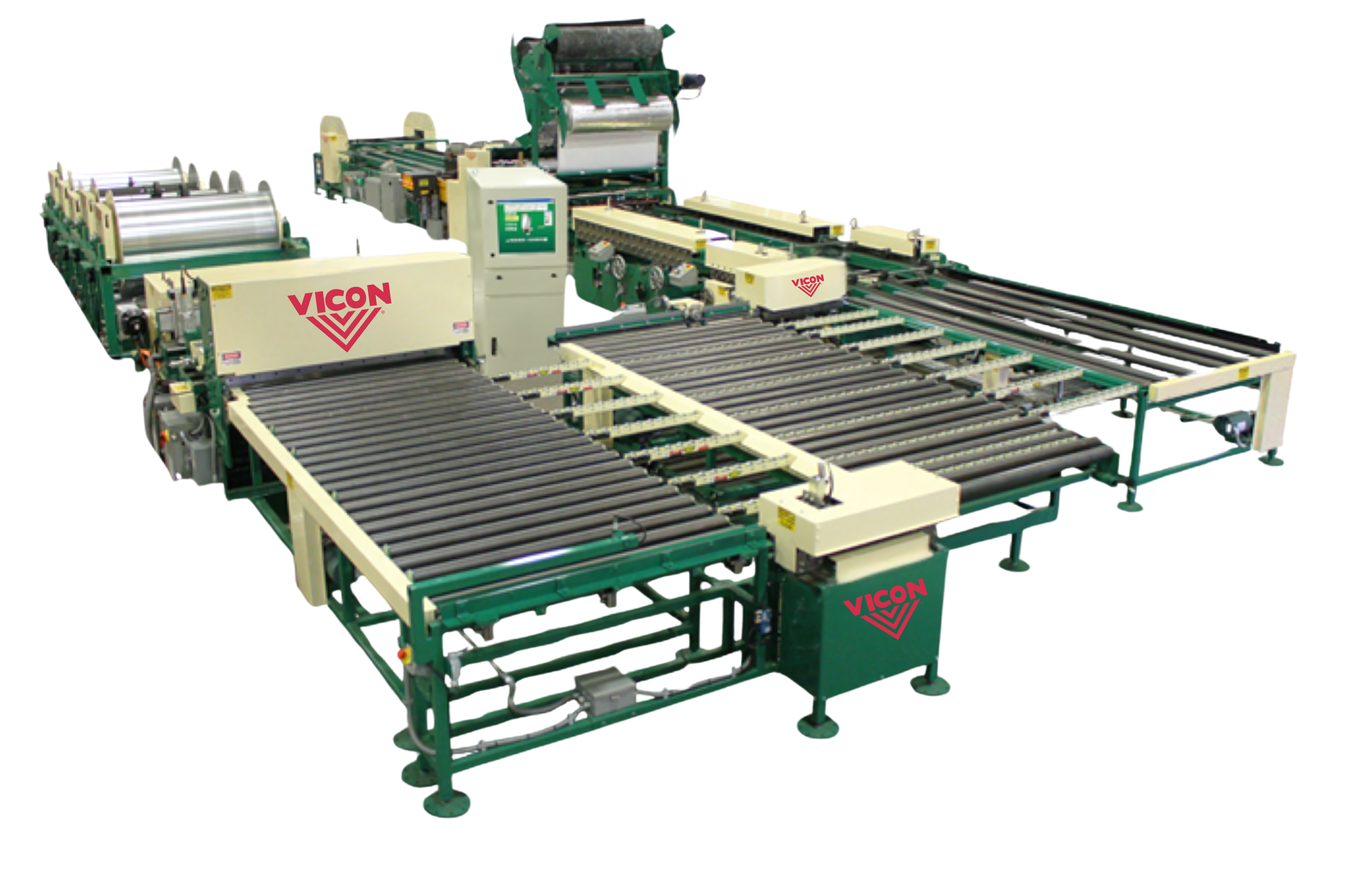

Designed to serve as the front-end of a Vicon Full Coil Line, allowing future expansion as production demands increase.

Features & Benefits

  • High-Speed Servo Feed System – Delivers one of the fastest production rates in the industry.
  • Gear-Driven Straightener – Four-roll straightener with 4" diameter rolls for accurate material feeding.
  • Individual Coil Drive Motors – Independent drive motors on each coil station for consistent coil handling.
  • Pneumatic Back-Up Wheels – Provide safe band removal and positive coil feed at every coil station.
  • Heavy-Duty Notching Unit – Combination dies produce Slip & Drive, TDX, Snaplock, and Pittsburgh notch patterns.
  • Dual Hydraulic Shear – High-carbon, high-chrome D-2 shear blades with independently adjustable blade gaps and a heavy-duty torsion synchronization shaft for precise, consistent shearing.
  • Vicon PC-Based Control System – Controls the complete Duct Line Express from a single operator interface.
  • SMACNA Ring-Type Beading – Produces consistent beading with standard SMACNA spacing.
  • Hands-Free Coil Feed – Automates material feeding to improve efficiency and reduce operator involvement.

Options

  • Heavy-Duty Coil Processing – 4.5" six-roll straightener with 14-gauge mild steel notching and shearing capability.
  • Tie Rod Hole Punch Unit – Model HP-5 produces tie rod and damper holes to SMACNA standards or your own custom standards.
  • Integrated Plasma Cutting Unit – Cuts round, oval, and rectangular openings for tap-ins and access doors anywhere on the duct blank. (U.S. Patents #9,393,638 & #9,731,376).
  • Patented Heavy-Duty Shearing – Vicon's patented shearing process delivers accurate, consistent cuts. (U.S. Patent #9,981,399 B2).
  • 30" Wide Coil Processing – Processes transverse duct flange (T25a & T25b) profiles on a standard 60" coil width system.
  • Heavy-Duty In-Line Slitting – Multiple slit configurations available for greater production flexibility.
  • Overfed Coil Cradle System – Economical overfed coil cradle option provides a smaller overall machine footprint.
