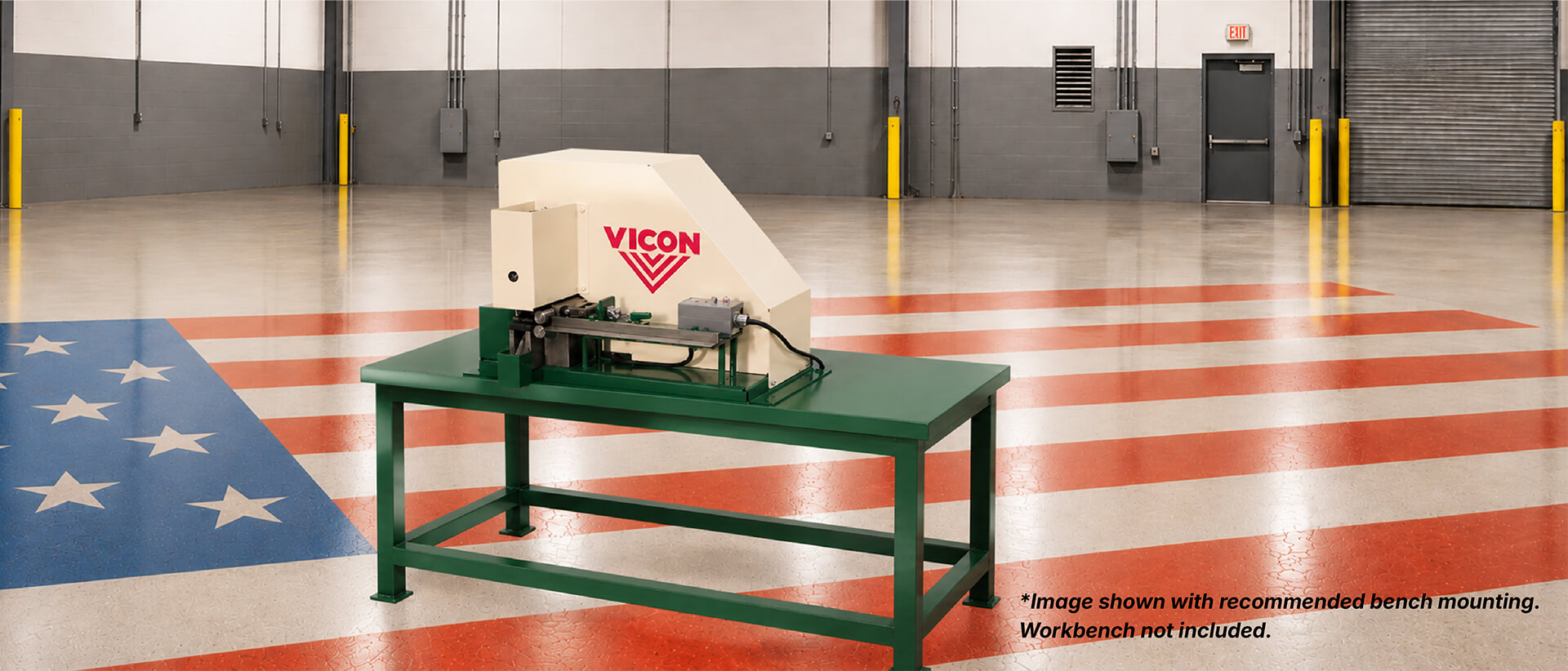

VICON EDGE NOTCHER

VICON EDGE NOTCHER

Contact SalesRequest a QuoteDownload Brochure

Precision Notching for Round Pipe and HVAC Duct Components

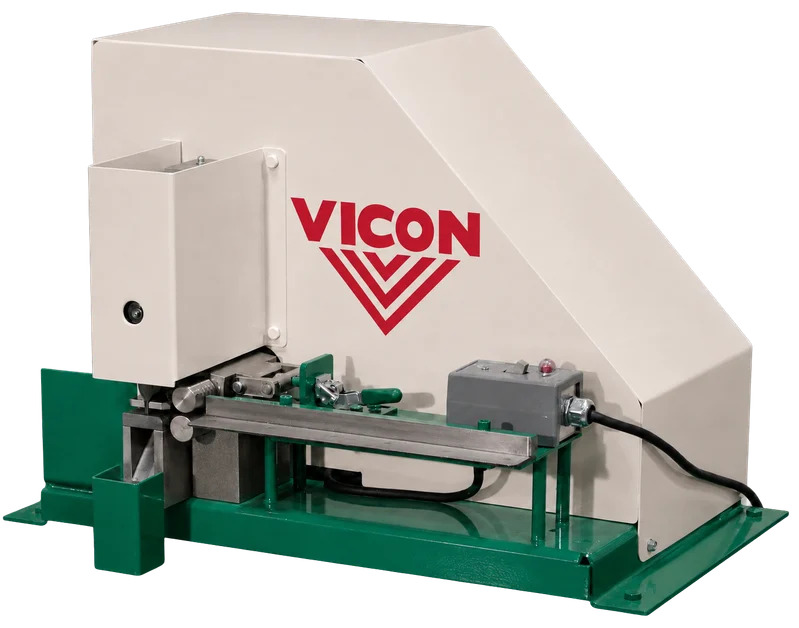

The Vicon Edge Notcher delivers fast, accurate notching for round pipe, tap-in locks, and rollformed HVAC duct components. A unique latch release feature allows round pipe to be notched after rollforming, while adjustable guide depth and variable notch settings provide exceptional flexibility and precision. Automatic material progression improves consistency and productivity, making the Edge Notcher an efficient solution for modern HVAC fabrication operations.

Available in 18 or 20-gauge configurations, the Vicon Edge Notcher is designed, engineered, manufactured, and supported in the USA, delivering the precision and reliability HVAC fabricators depend on every day.

Key Features

Notches Round Pipe After Rollforming

Notches Round Pipe After Rollforming

Closes Pittsburgh seams from either side without flipping the duct section.

Adjustable Notch Depth

Adjustable Notch Depth

Adjustable guide depth allows the punch to notch precisely up to the standing seam profile for consistent results.

Before or After Rollforming

Before or After Rollforming

Unique latch release design allows operators to notch round pipe after it has been rolled.

Tap-In Lock Notching

Tap-In Lock Notching

Efficiently notches tap-in locks after rollforming, helping streamline downstream fabrication processes.

Features & Benefits

  • 18 or 20 Gauge Capacity – Available in 18 or 20 gauge mild steel configurations to match your production requirements.
  • Adjustable Notch Depth – Variable notch depth up to 1¼" provides greater application flexibility.
  • Variable Notch Spacing – Adjustable notch spacing with a factory setting of ¾" for consistent results.
  • Automatic Material Progression – Automatically advances flat parts or round pipe for efficient operation.
  • Motor Options – Available with a 2 HP, 220V motor (18-gauge model) or a 1 HP, 110V motor (20-gauge model).


*Bench mounting recommended
