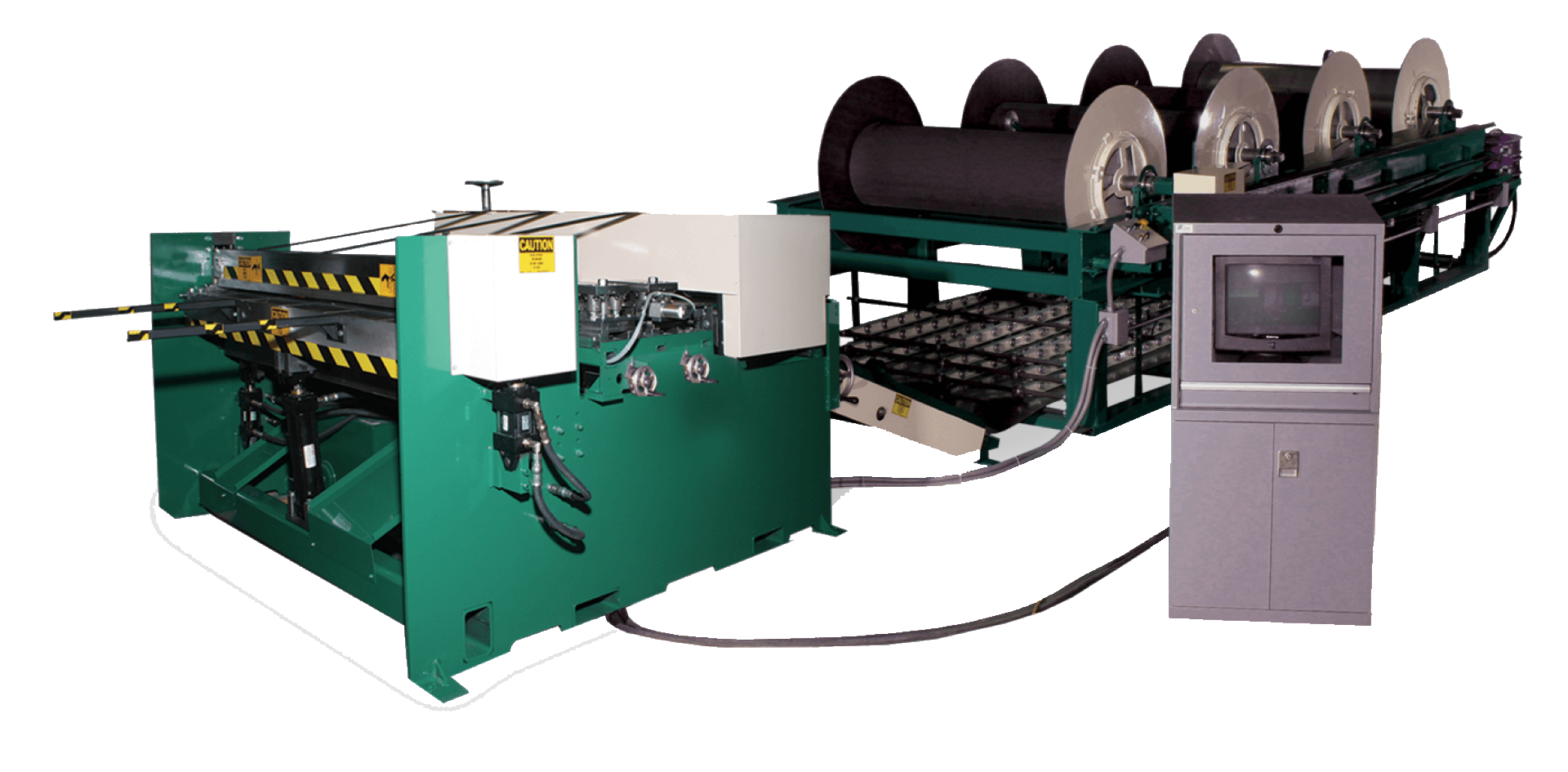

Automated Shearing & Bending for Duct Production

The Vicon Shear & Bend is a heavy-duty coil processing system designed to streamline the production of rectangular HVAC ductwork. Combining coil feeding, straightening, beading, notching, shearing, and bending in one efficient system, it helps reduce manual material handling while improving production speed and consistency.

Built for demanding sheet metal fabrication environments, the Shear & Bend features heavy-duty material handling components, combination notch dies, and a powerful hydraulic shear for clean, consistent processing. The bending system forms the male Pittsburgh edge and produces L-sections, U-sections, and full-wrap duct, providing flexibility for a variety of rectangular duct production requirements.

Powered by Vicon Coil Line Software, operators benefit from automated production control and customizable fabrication standards developed specifically for HVAC duct manufacturing. Designed, engineered, manufactured, and supported in the USA, the Vicon Shear & Bend delivers the reliability, accuracy, and productivity today's fabrication shops demand.

Key Features

Patented Coil Handling

Patented Coil Handling

Vicon's patented quick-change coil spool technology helps reduce setup time and simplify coil loading.

Vicon Fabrication Software

Vicon Fabrication Software

Software developed and supported by Vicon provides advanced automation and customizable production standards.

Consistent, Repeatable Production

Consistent, Repeatable Production

Automated processing helps maintain accuracy from one duct section to the next while reducing operator-dependent variation.

Expandable Platform

Expandable Platform

Built for the demands of continuous HVAC duct production with rugged components designed for long-term reliability.

Features & Benefits

  • Pneumatic Back-Up Wheels – Provide safe band removal and positive coil feed at every coil station.
  • Gear-Driven Straightener – Four-roll straightener with 4" diameter rolls ensures accurate, consistent material feeding.
  • Heavy-Duty Notching Unit – Combination dies produce Slip & Drive, TDX, Snaplock, and Pittsburgh notch patterns.
  • Dual Hydraulic Shear – High-carbon, high-chrome D-2 shear blades with independently adjustable blade gaps deliver precise, consistent shearing.
  • Integrated Bending Unit – Forms the male Pittsburgh edge along with L-section, U-section, or full-wrap duct configurations.
  • Vicon PC-Based Control System – Controls the complete production line from a single operator interface.
  • SMACNA Ring-Type Beading – Produces consistent beading with standard SMACNA spacing.
  • Hands-Free Coil Feed – Automates material feeding to improve productivity and reduce operator involvement.

Options

  • 72" Coil Capacity – Processes coils up to 72" wide for high-volume duct fabrication.
  • High-Speed Servo System – Precision servo controls deliver fast, accurate, and repeatable material positioning.
  • Tie Rod Hole Punch Unit – Model HP-5 produces tie rod and damper holes to SMACNA standards or your shop's custom specifications.
  • Automatic Male Button Punch – Produces accurate button punches for Snaplock male edges with consistent results.
  • Overfed Coil Cradle System – Economical coil handling option minimizes the machine footprint while maintaining efficient material loading.
