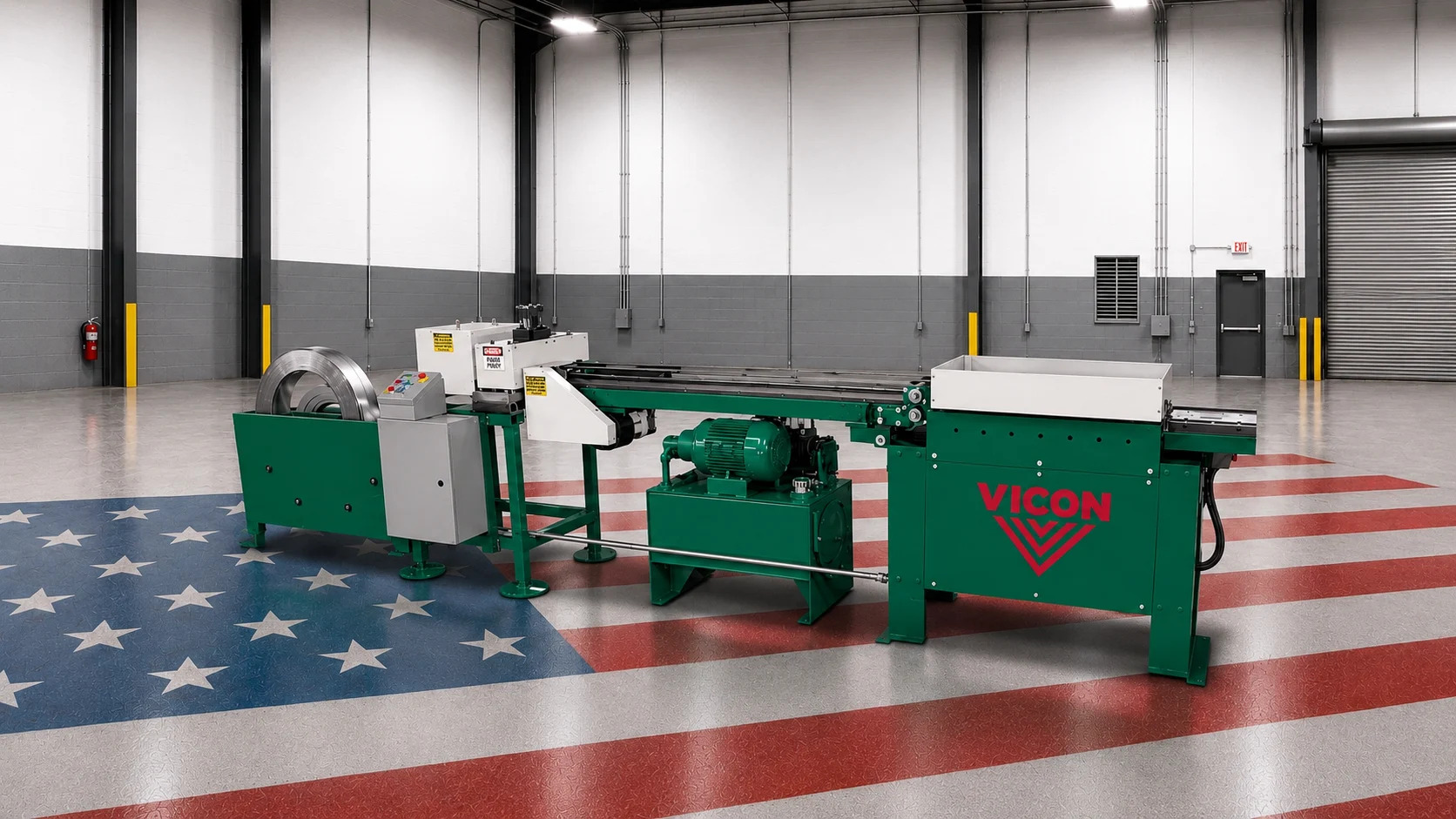

The Vicon Coil Strip Feed Line is a versatile coil processing system designed to improve efficiency, accuracy, and material handling for HVAC duct fabrication and sheet metal rollforming applications. Available in multiple configurations, the system uncoils, straightens, and cuts coil stock to length either before or after the rollformer, allowing the line to be configured around specific production requirements.
Vicon coil cradles and machine guides pre-align material as it enters the processing system, helping reduce setup time and maintain consistent material flow.
Vicon PC Cut-to-Length Control provides precise part production and can be synchronized with Vicon office software for a more streamlined workflow from the office to the shop floor.
Depending on the application, the Coil Strip Feed Line can incorporate hydraulic straightening, shearing, contoured dies, hole punching, transfer conveyors, and other processing capabilities. Vicon can also manufacture strip feed lines specifically for producing single-wall turning vanes for HVAC elbows.
Built for demanding production environments, the Vicon Coil Strip Feed Line provides HVAC manufacturers and sheet metal fabricators with a flexible, dependable solution for increasing productivity and producing accurate, repeatable finished parts.
Key Features
The 60" dual transfer conveyor supports blanks during shearing and feeds material up to 60" long directly into the rollformer
Multiple configurations allow material to be uncoiled, straightened, cut, punched, or processed with straight shear or contoured dies based on the application.
A hydraulically driven three-roll straightener with entrance and exit pinch rolls prepares coil stock for consistent downstream processing.
Vicon PC Cut-to-Length Control provides accurate finished parts with a length tolerance of ±1/16".
See how the Vicon Strip Feed Line delivers precise cut-to-length processing, automated material handling, and consistent high-speed production for HVAC fabrication.
