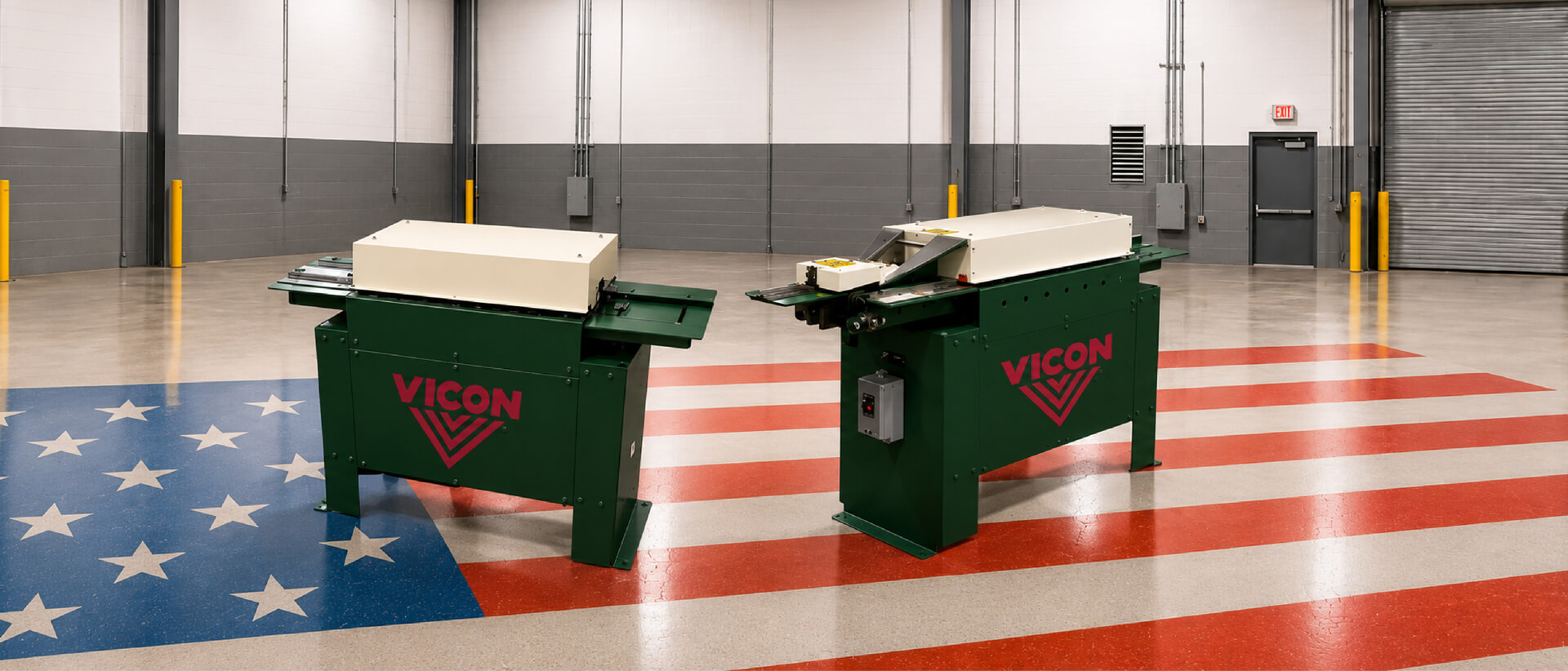

VICON V8 PITTSBURGH

VICON V8 PITTSBURGH

Contact SalesRequest a QuoteDownload Brochure

High-Performance Pittsburgh Rollforming for HVAC Duct Fabrication

The Vicon V8 Pittsburgh Rollformer is engineered to produce high-quality Pittsburgh seams that exceed SMACNA standards while delivering the durability, precision, and reliability demanded by today's HVAC fabrication shops. Featuring eight forming stations and a heavy-duty drive system, the V8 provides consistent seam quality and dependable performance in high-production environments.

Built with stress-proof roller shafts, large heavy-duty bearings, and an industrial oil bath worm gear drive, the V8 is designed for long service life and minimal maintenance. Its unique eight-station configuration eliminates opening rolls on any roll set, improving forming consistency and reducing setup complexity.

Available with optional Right Angle Flange, 4-in-1, or Acme Lock tooling, the V8 can be configured to meet a variety of fabrication requirements while maintaining production speeds up to 90 FPM. Designed, engineered, manufactured, and supported in the USA, the Vicon V8 Pittsburgh Rollformer delivers the performance and reliability HVAC fabricators depend on every day.

Key Features

Eight Forming Stations

Eight Forming Stations

Eight dedicated forming stations provide consistent profile quality without opening rolls on any roll set.

Production Speeds up to 90 FPM

Production Speeds up to 90 FPM

High-speed rollforming increases throughput while maintaining consistent seam quality.

Heavy-Duty Drive System

Heavy-Duty Drive System

Industrial oil bath worm gear drive, roller chain drive, and stress-proof shafts deliver long-term reliability.

Configurable Rollforming Options

Configurable Rollforming Options

Available with Pittsburgh, Right Angle Flange, 4-in-1, or Acme Lock tooling to match shop requirements.

Made in the USA

Made in the USA

100% Designed, engineered, and manufactured in the USA—backed by expert technical support.

Support that Stays

Support that Stays

Industry-leading technical support and experienced services  Teams when you need them.

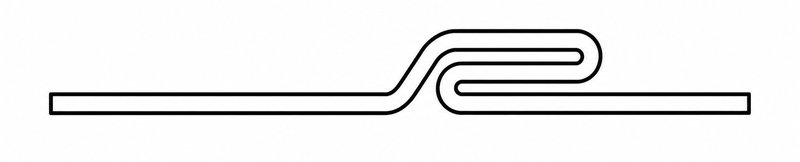

PITTSBURGH TOOLING - LEFT OUTBOARD (STD) SPEED
Small Pittsburgh: 20-28 gauge, 5/16" pocket, 1" notch 90 FPM
Large Pittsburgh: 18-24 gauge, 7/16" pocket, 1-3/8" notch 90 FPM
Large Pittsburgh: 16-20 gauge, 7/16" pocket, 1-3/8" notch 45 FPM

Features & Benefits

  • Quietest machine in the industry
  • Eight forming stations for all roll sets - no opening roll on any roll set
  • Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
  • Slide out shaft design allows for easy maintenance
  • Heavy-duty 1” diameter stress proof roller shafts
  • Woodruff shaft keys for added strength and precise alignment
  • 5 HP motor coupled to an industrial oil bath worm gear drive for longevity
  • Heavy-duty roller chain drive, no belts
  • Heavy-duty motor starter with thermal protection overloads

Options

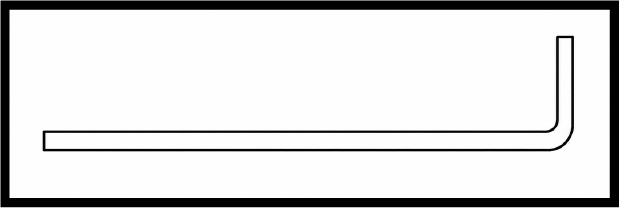

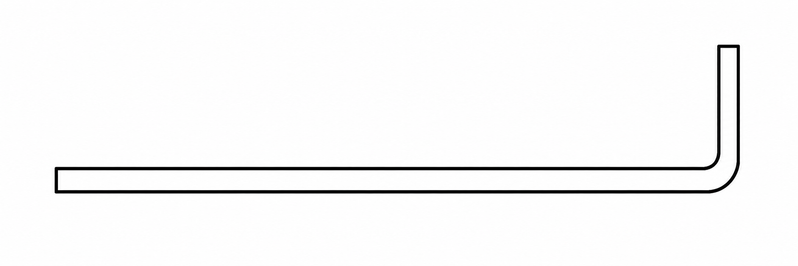

Right Angle Flange Rolls

20-28 gauge (1/4" - 7/16")
16-24 gauge (1/4" - 7/16")

Right Angle Flange

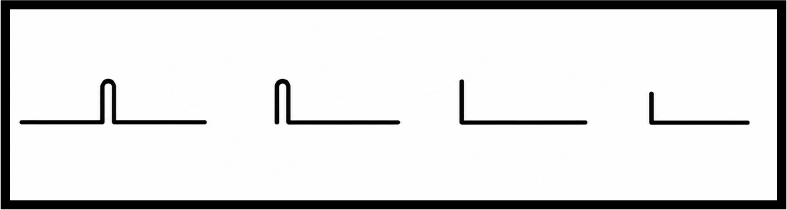

4-in-1 Rolls (22-28 gauge)

to produce and clinch small standing seam, 7/16" flange, and male ¼ edge

4-in-1 Rolls

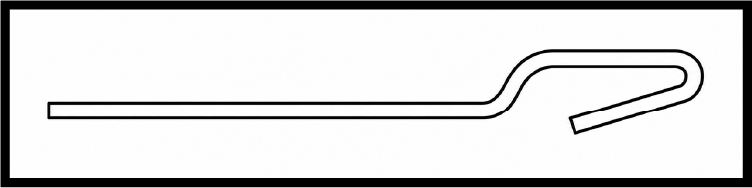

Acme (Double Seam) Rolls

20-28 gauge or 16-22 gauge

Acme Rolls
  • 5HP Single phase motor
  • 5 gallon Sealant System for sealing the Pittsburgh lock (1 gun)
  • Additional options available upon request
