Precision Forming for TDX Flanged Ductwork and HVAC Fittings

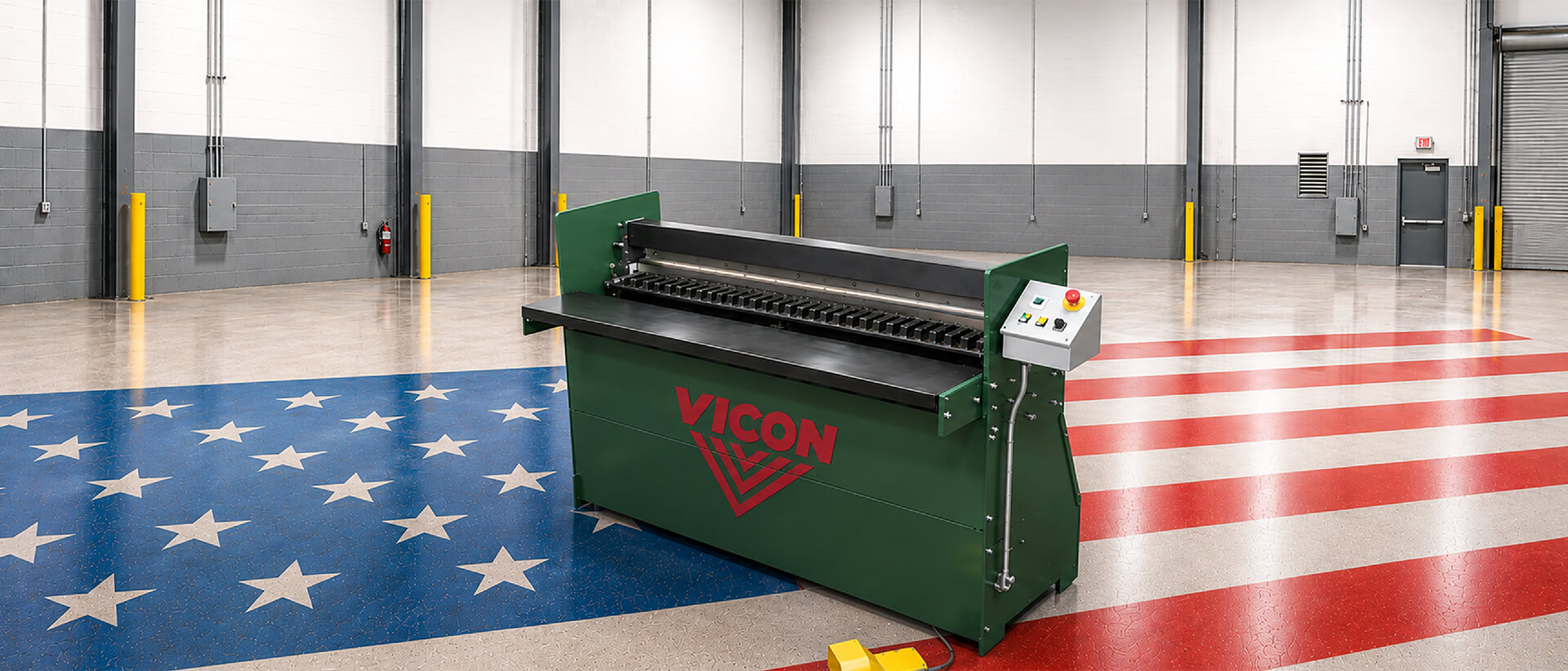

The Vicon Duct Brake is engineered to simplify the forming of TDX flanged ductwork, HVAC fittings, and full wrap duct sections while delivering consistent, repeatable bending performance. Designed for high-production fabrication environments, the Duct Brake enables effortless positioning and precise 90-degree bending of L-duct sections, full wrap duct, and fittings.
Built with precision heavy-duty construction, the Vicon Duct Brake features a pneumatic forming cycle and single foot switch operation that reduce operator effort while improving productivity. Adjustable controls, programmable bend sequences, and flexible operation modes allow fabricators to maintain consistent quality across a wide range of duct fabrication applications.
Capable of forming 16-gauge material with a 5-foot bending capacity and accommodating lined duct with up to 2 inches of insulation, the Duct Brake provides exceptional versatility for HVAC fabrication operations. Adjustable height settings for TDX, Slip & Drive, and raw ductwork further enhance flexibility while simplifying machine setup.
Designed, engineered, manufactured, and supported in the USA, the Vicon Duct Brake delivers the precision, durability, and efficiency HVAC fabricators depend on every day.
Forms TDX flanged ductwork,
full wrap duct, and fittings
with accurate, repeatable
bends.
Single foot switch operation
reduces operator effort
while increasing
productivity.
Forms duct with up to 2" liner
capacity, providing greater
fabrication flexibility.
Adjustable height table and
programmable bend sequences
support TDX, S&D, and raw
duct applications.
100% Designed, engineered, and manufactured in the USA—backed by expert technical support.
