Heavy-Duty CNC Plasma Cutting for Fabrication Shops

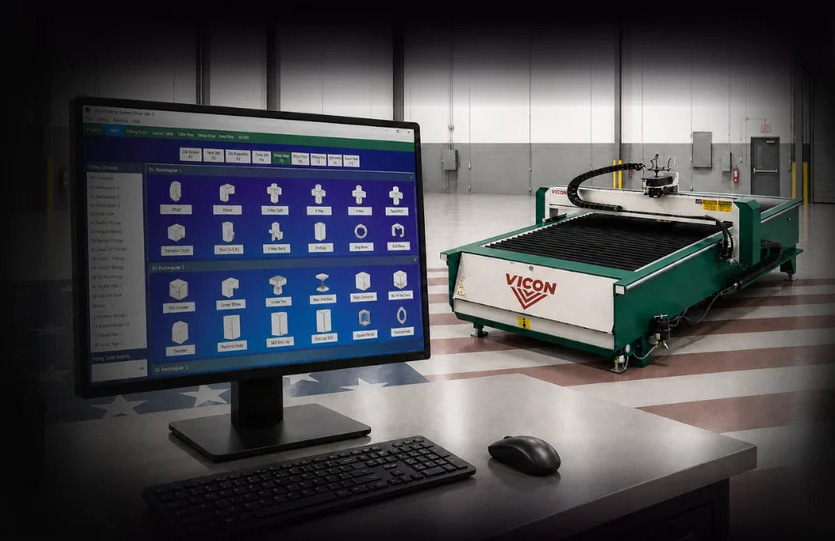

The Vicon Fabricator-HD is a rugged, high-performance CNC plasma cutting system engineered for fabrication shops, job shops, and metal processing operations requiring exceptional accuracy, reliability, and productivity. Designed to process everything from light-gauge sheet metal to heavy plate, the Fabricator-HD delivers fast, clean cuts while reducing material waste and operating costs.

Built with a heavy-duty one-piece frame, rigid dual rack-and-pinion drives, and digital servo motors, the Fabricator-HD provides precise gantry movement, sharp corners, and consistent part accuracy. High-speed traversing speeds exceeding 2,000 IPM help maximize throughput without sacrificing cut quality.

Powered by Vicon Fabrication Software, operators benefit from advanced nesting, common-line cutting, DXF importing, integrated CAD functionality, and intuitive machine controls that streamline production from programming to finished part. Optional electronic torch height control and collision protection further enhance cut quality while helping protect valuable cutting components.

Available in table sizes from 5' x 10' up to 8' x 40', the Fabricator-HD can be configured to meet the demands of virtually any fabrication environment. Designed, engineered, manufactured, and supported in the USA, the Fabricator-HD delivers the performance, durability, and precision modern fabricators depend on every day.

Key Features

Heavy-Duty One-Piece Frame

Heavy-Duty One-Piece Frame

Built for long-term durability and precision without the assembly requirements of rail-style systems.

Vicon Fabrication Software

Vicon Fabrication Software

Advanced nesting, DXF importing, common-line cutting, and integrated CAD tools help maximize material utilization and productivity.

Precision Motion Control

Precision Motion Control

Dual rack-and-pinion drives and digital servo motors deliver exceptional accuracy and sharp, clean corners.

Flexible Material Processing

Flexible Material Processing

Traversing speeds up to 2,000 IPM increase throughput and reduce production time.

Features & Benefits

  • Flexible Cutting Areas – Standard 5' x 10' cutting area with options available up to 8' x 40'.
  • One-Piece Heavy-Duty Frame – Requires no assembly, reducing installation time while providing a rigid cutting platform.
  • Flexible Torch Options – Accommodates a variety of torches for cutting materials from light gauge through 1-1/4" plate.
  • Dual Torch Stations – Two torch stations accommodate a variety of cutting applications.
  • 2,000+ IPM Traverse Speed – High-speed dual drives provide fast positioning while maintaining maximum torch cutting speeds.
  • Precision Rack-and-Pinion Drives – Rigid dual drives and digital motors provide precise gantry movement for sharp corners and highly accurate parts.
  • Rigid Gantry & Table Design – Crisp gantry motion and heavy-duty construction maintain tight cutting tolerances.
  • Reliable Motion Control – Proximity switches and precision digital motors support trouble-free operation and consistent performance.
  • Integrated Vicon Fabrication Software – Program, load, and edit jobs directly at the machine while cutting continues.
  • Custom Table Stops – Allow flexible fixturing for a variety of parts and cutting applications.
  • On-Screen Machine Status – Provides efficient operator control and simplified diagnostics.

Specifications

Vicon Fabrication Cutting Software: Power & Simplicity

The Vicon Fabrication Cutting Software offers a user-friendly, menu-driven interface, continuously updated by Vicon’s in-house engineers. Features include:
✔ Full shape libraries with user-defined options
✔ Super Nesting & common line cutting for material efficiency
✔ DXF file import with Auto Kerf & Auto Lead-In
✔ Integrated CAD sketch program for streamlined design
