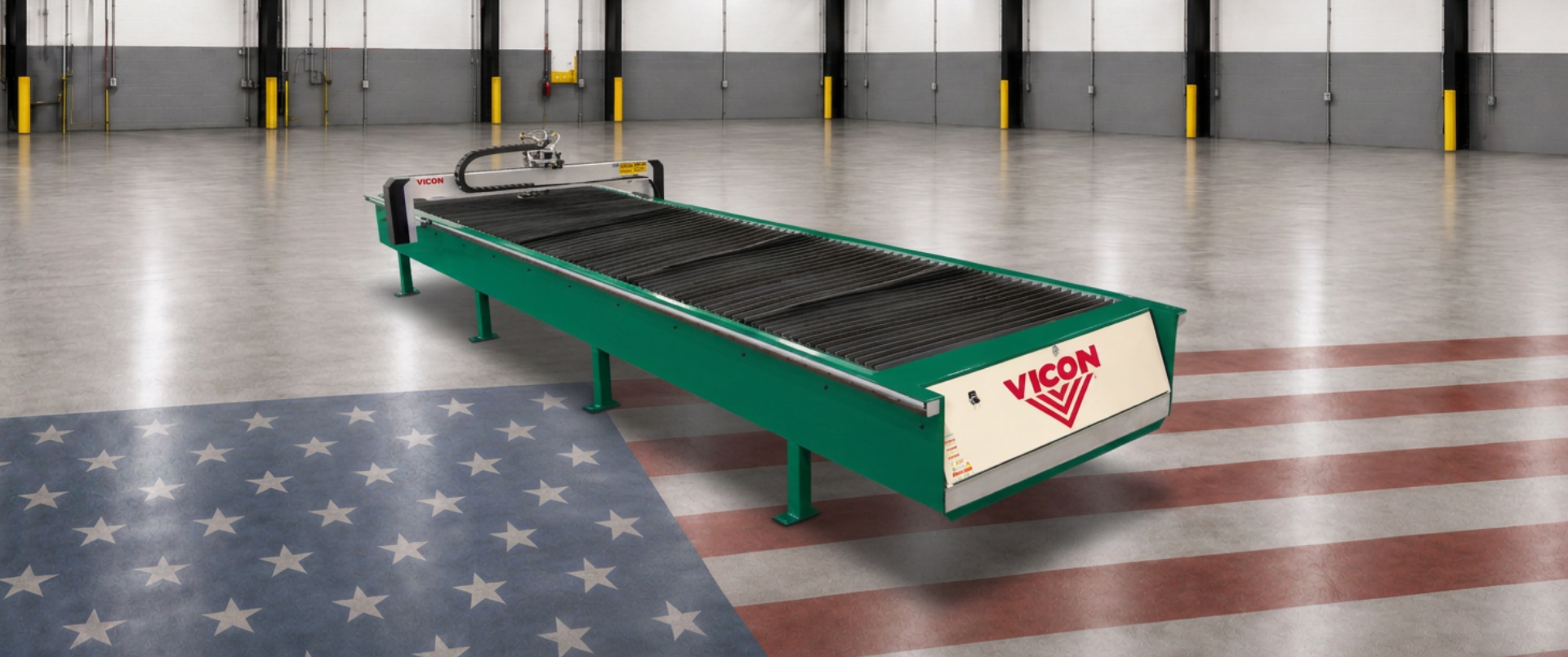

The Vicon HVAC 520 is a high-performance CNC plasma cutting system engineered specifically for high-volume HVAC duct fitting production. Fast, accurate, and efficient, the HVAC 520 provides the extended cutting capacity needed to increase throughput, maximize material utilization, and streamline manufacturing operations.
Designed with a standard 5' × 20' cutting area, the HVAC 520 can process two 10' sheets or material lengths up to 22'. Its rigid, lightweight aluminum gantry, rugged drive system, and high-speed digital controls deliver exceptional positioning accuracy and consistent part quality. The system processes materials from 28-gauge sheet metal to 1/2" plate, producing clean cuts, sharp corners, and precise notches.
High-speed motors provide traversing speeds up to 2,000 IPM to maximize throughput and production efficiency. Non-lubricating gears and bearings reduce maintenance requirements, while the quick-release magnetic torch holder allows fast, tool-free consumable changes. The one-piece downdraft table incorporates automatic CNC-controlled exhaust for efficient fume extraction during cutting.
Powered by Vicon HVAC Cutting Software, operators can program, load new jobs, and make edits directly at the machine while it is operating. Designed, engineered, manufactured, and supported in the USA, the Vicon HVAC 520 delivers the capacity, accuracy, and performance required for demanding HVAC fabrication environments.
Key Features
Process larger sheets and maximize material utilization with the extended cutting table design.
Exclusive Vicon HVAC
Cutting Software streamlines
nesting, cutting, and
production workflows.
Dual rack-and-pinion drives provide accurate positioning and consistent part quality.
Traversing speeds up to
2,000 IPM increase
throughput and reduce
production time.
See how Vicon Plasma Cutting Systems deliver fast, precise cutting, exceptional material utilization, and reliable performance for high-volume HVAC duct fabrication.
