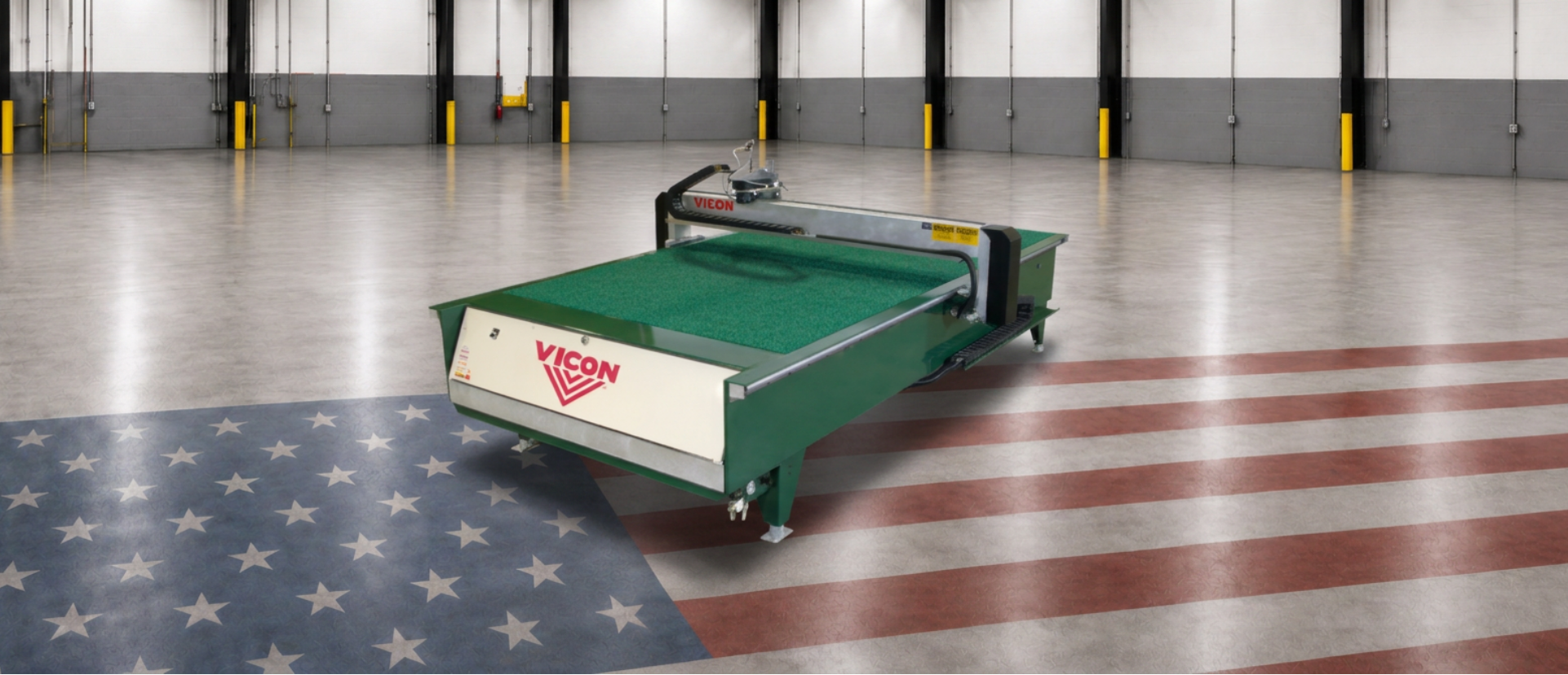

The Vicon HVAC 510DL is a high-performance CNC plasma cutting system designed to process both HVAC duct fittings and duct liner on a single machine. Engineered to maximize productivity and material utilization, the HVAC 510DL combines Vicon's proven plasma cutting technology with dedicated liner cutting capabilities, allowing fabricators to streamline production while reducing equipment footprint and labor requirements.
Featuring a 5' x 10' cutting area, dual rack-and-pinion drives, and a lightweight aluminum gantry, the HVAC 510DL delivers exceptional cutting accuracy and high-speed performance for both sheet metal and liner applications. Traversing speeds up to 2,000 IPM help increase throughput while maintaining consistent part quality and precision.
Powered by Vicon HVAC Cutting Software, operators benefit from advanced nesting, machine-side programming, and seamless integration between fitting and liner production. The dual-purpose design allows shops to efficiently process complete ductwork components from a single platform, improving workflow efficiency and reducing material handling.
Designed, engineered, manufactured, and supported in the USA, the Vicon HVAC 510DL delivers the flexibility, performance, and reliability HVAC fabricators depend on every day.
Key Features
Cuts both metal duct fittings and insulation liner on a single integrated system.
Exclusive Vicon HVAC Cutting Software streamlines nesting, cutting, and production workflows.
High-speed gantry and dual rack-and-pinion drives deliver accurate, repeatable cutting.
Traversing speeds up to 2,000 IPM increase throughput and reduce production time.
Increase productivity with the optional patented Barcode Scanning System. Simply scan the sheet metal part, and the machine automatically programs the corresponding downsized duct liner, eliminating manual data entry and reducing sorting errors. Streamline the flow of sheet metal and duct liner throughout your fabrication shop while improving accuracy and efficiency. Combined with advanced true-shape nesting technology, the system maximizes material utilization and helps minimize waste for a more cost-effective production process.
See how the Vicon Plasma Liner Cutting System delivers fast, precise insulation cutting with exceptional accuracy and material utilization.
