Automated Duct Liner Cutting for HVAC Fabrication

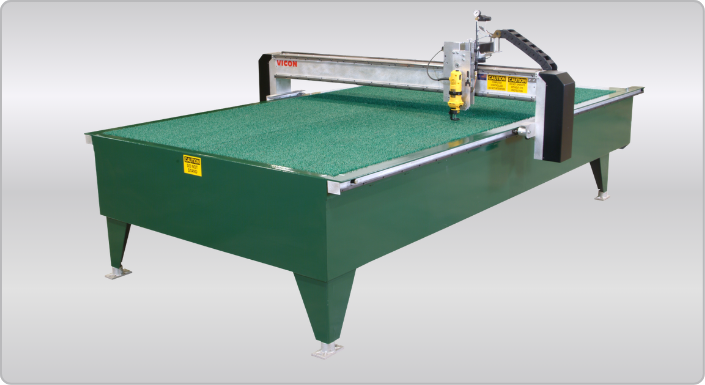

The Vicon HVAC 510SL is a dedicated duct liner cutting system designed to eliminate the labor-intensive process of manual liner cutting. Utilizing Vicon's patented liner cutting technology, the HVAC 510SL delivers clean, dry, fast, smokeless, and highly accurate liner processing while significantly reducing material waste and operating costs.

Ideal for fabrication shops that already operate a plasma cutting system, the HVAC 510SL provides additional liner cutting capacity without interrupting metal production. Dual rack-and-pinion drives, a lightweight aluminum gantry, and traversing speeds up to 2,000 IPM deliver exceptional accuracy, repeatability, and productivity.

Powered by Vicon HVAC Cutting Software, operators benefit from advanced nesting, machine-side programming, and intuitive controls that streamline production while maximizing material utilization. Designed, engineered, manufactured, and supported in the USA, the HVAC 510SL delivers the speed, precision, and efficiency HVAC fabricators depend on every day.

Key Features

Patented Liner Cutting Technology

Patented Liner Cutting Technology

Automates duct liner cutting
with a clean, dry, smokeless
process that improves
accuracy and reduces
waste.

Vicon HVAC Software

Vicon HVAC Software

Exclusive Vicon HVAC
Cutting Software streamlines
nesting, cutting, and
production workflows.

Dedicated Liner Production

Dedicated Liner Production

Adds liner cutting capacity without tying up valuable plasma cutting equipment.

High-Speed Performance

High-Speed Performance

Traversing speeds up to
2,000 IPM increase
productivity and reduce
processing time.

Features & Benefits

  • Dedicated Liner Cutting – Economical, stand-alone system designed for duct liner cutting in both low- and high-volume shops.
  • Expand Existing Cutting Capacity – Ideal for shops with plasma cutting systems that need additional liner cutting capability.
  • Multiple Table Sizes – Available in 5' x 10', 5' x 20', 6' x 10', and 6' x 20' configurations.
  • Patented Liner Cutting System – Patented technology securely holds and cuts duct liner. (U.S. Patent No. 6,540,456)
  • Integrated Vicon Cutting Software – Program, load, and edit jobs directly at the machine while it continues operating.
  • Synthetic Cutting Surface – Provides smooth, consistent liner cutting.
  • Dual Rack-and-Pinion Drives – Deliver greater positioning accuracy across both axes.
  • Lightweight Aluminum Gantry – Low-inertia design improves part accuracy and cutting performance.
  • Rigid Roller Guides – Provide greater stability, rigidity, and accuracy on both axes.
  • 2,000 IPM Traverse Speed – High-speed positioning helps increase production efficiency.
  • Low-Maintenance Components – Non-lubricating gears and bearings reduce routine maintenance requirements.

Options

  • Patented Bar Code Scanning – Automatically scans part barcodes to improve identification, sorting, and production efficiency.

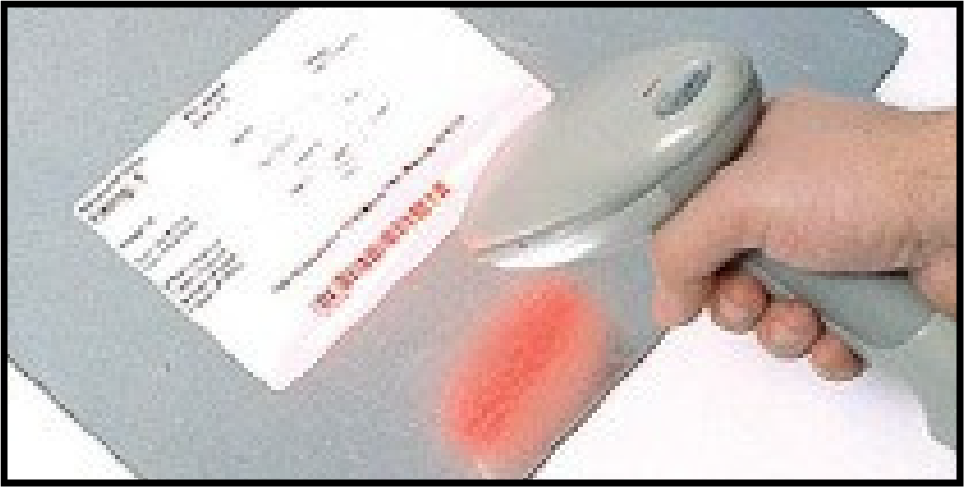

Increase productivity with the optional patented Barcode Scanning System. Simply scan the sheet metal part, and the machine automatically programs the corresponding downsized duct liner, eliminating manual data entry and reducing sorting errors. Streamline the flow of sheet metal and duct liner throughout your fabrication shop while improving accuracy and efficiency. Combined with advanced true-shape nesting technology, the system maximizes material utilization and helps minimize waste for a more cost-effective production process.

Specifications

Effective Cutting Area
5' x 20' standard
Material Capacity
28-gauge to 1/2" thick plate
Machine Dimensions
288" x 90" x 35"
